LUMENS ENERGY - SOLAR POWER EQUIPMENTS

ZOOM

ON-GRID SYSTEM

(Solar Panel)

Availability: In Stock

Condition: New

Brand: LUMENS ENERGY

Grid tie solar systems and On-grid systems are the same mostly used by businesses and homes. In this system battery storage is not required and these systems are directly connected to the public electricity grid. Solar power generated by the ongrid system that is not used in home directly export to the electricity grid and the owner get paid for the exported energy through FIT (Feed-in-tariff) Grid-tied, on-grid, utility-interactive are all terms used to describe the same concept-a solar system that is connected to the utility power grid. Electricity generated during daytime is consumed and excess units are exported back to the Grid.

During nights when solar is not available, power will be drawn from the Grid :
1.Save a lot on your electricity bills. also sell the excess units generated to the Grid by Net Metering.
2.No amount of electricity generated is getting wasted. It is either consumed or exported to the Grid.
3.Easy to design and install.
4.Minimum maintenance.

Step 1 - In an on-grid system, after reaching the electricity to the switchboard the meter calculates the power that how much power is exporting and importing. Metering system works different according to that area. Electricity that is exporting to the public electricity grid can be consumed by the other consumers on the grid. In case the solar system is not working or not producing enough power as per the requirement of the owner in that condition owner of the on grid power plant will start consuming or importing the electricity for the grid

What is a Solar Rooftop Power Plant?

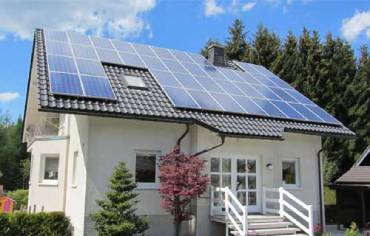

In a Solar Rooftop Power Plant, solar panels are installed on the roofs of any residential, commercial industrial or institutional buildings.

How much area is required to install a Solar Rooftop Power Plant?
Typically, 1 kW Solar Plant requires shadow free rooftop area of minimum 10 sq. Mt. Therefore to install a plant of size 30 kW you need at least 300 sq.mt.

How much does a Solar Rooftop Power Plant Cost?
The cost of a rooftop solar PV system depends on the function it serves (to feed power into the grid,to support the load during a power failure, etc.) And incentives subsidies available. Cost also depends upon the type of system viz Grid Connected or off-Grid Power Plant as well as the size of the system. 1 kw Grid Connected system will cost around Rs. 90,000/- to Rs. 100,000/- As the size of system increases, cost tend to come down. The above prices are for components from Tier 1 manufacturers with 5-year manufacturer’s warranty. In addition the PV modules have output warranty of 90% of rated capacity for the first 10 years and 80% of rated capacity for the next 15 years. Cost of battery backup has not been considered as that can alter the economics significantly depending on the extent of backup (autonomy) required. Not only do batteries add to the initial cost but also recurring maintenance, and replacement expenditure as well as the energy loss on charging and drawing from the battery also adds to the cost of power. A battery backup could add significant costs to the above system.

How much Electricity does a Solar Rooftop Power Plant generate?
Electricity Generation from a Solar Rooftop Power Plant is dependent on several factors like Location, Orientation of Rooftop, Panel Efficiency and Ambient Temperature. Generally, a 1 kW Plant will generate about 4-5 kWh(units electricity per day in regions that have good-excellent sunshine. It is an average calculated over a year factoring in all the dark days. Generation on individual days at your location will vary based on meteorological conditions.
